Peter Childs Coil Grip Lathe Chuck for Wood Turning
Safe
positive grip face plate for hollow turning
Rare, classic chuck safely grips spindle
and hollow work, infinitely varied uses with your shop-made wooden face
plates and jigs.
Replaces 4-jaw chucks and many other types of wood
lathe holders.
|
Innovative coil-spring chuck design was invented in 1972 and is no
longer being manufactured, as far as we can tell. The one for sale here
was purchased in 1975, used for 25 years, and has another 50 years of
useful life in it.
Workpiece is started as a spindle turning, and
a flanged disk is turned at the bottom. This disk is inserted into
the chuck, which is tightened around the wooden flange, causing the spring
to contract and producing a solid grip
that holds large pieces safely. Includes wooden hand sanding jig for disks
available separately.
PRICE: to be determined - or make an offer!
Shipping available - not included in price.
Credit cards accepted.
|
|

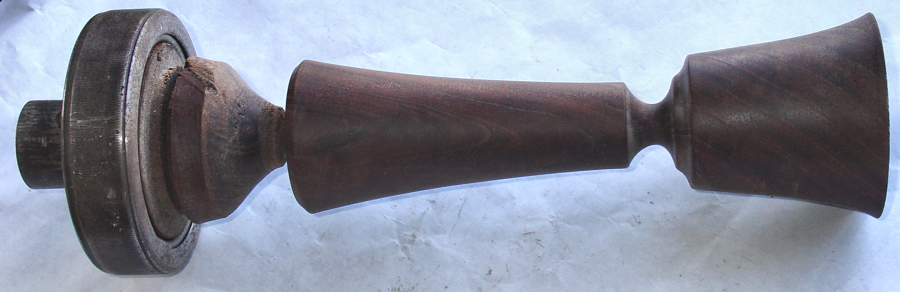

Workpiece, jig, or custom wooden faceplate is made as part of a spindle
turning. Tightening the chuck draws spring inward to grip firmly.
This wooden fixture is used for rapid mount/dismount of toy wheels
to hand sand rough edge. Center pin locates workpiece, steel dog
provides rotation. Workpiece is held in place by gentle finger pressure.
Available separately. |
 |
All the parts of the chuck, plus the jig shown above.
Note flange at
right of jig - nominal diameter 3.5". Workpiece will be centered as
spring is tightened. Thread is 1" - 8 tpi, standard for popular lathes
such as Delta. |
 |
Disassembled chuck, with wrenches (supplied) and wooden jig
|
Walnut goblet. Basic shape was made as regular spindle turning, then
mounted on coil grip chuck to complete cup.
|
 |
