Bridgewood BW-003
Dust-Collection System for Woodworking Shop
with at least 3 machines



High-velocity blower will keep the air clear for up to 4 machines running at once.
This dust collection system is currently piped for 11 machines.
Motor: 220v, 18 Amp, 3600 RPM
4 cloth collection bags: Upper: 24 diam x 60h; Lower: 24 diam x 36h
Overall height - approx 9 ft
Footprint: approx. 5 ft x 2.5 ft
***************
SALE INCLUDES:

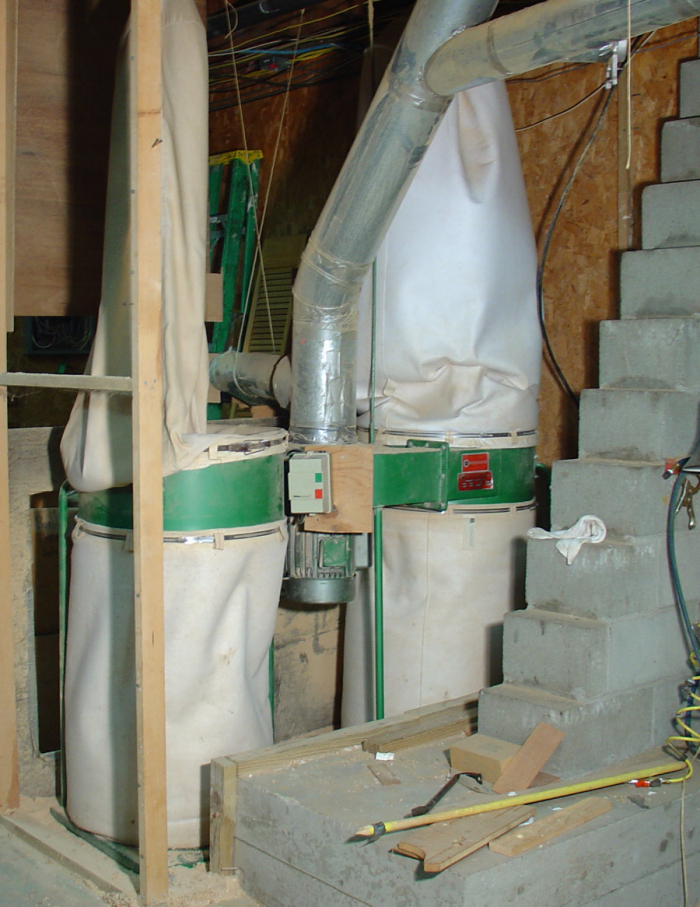

Dust Collector 4-bag unit

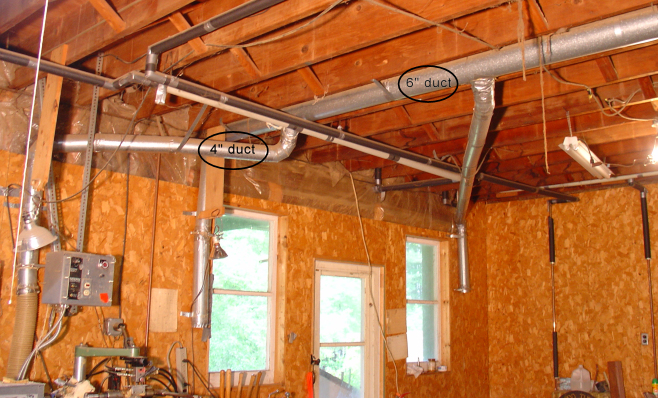

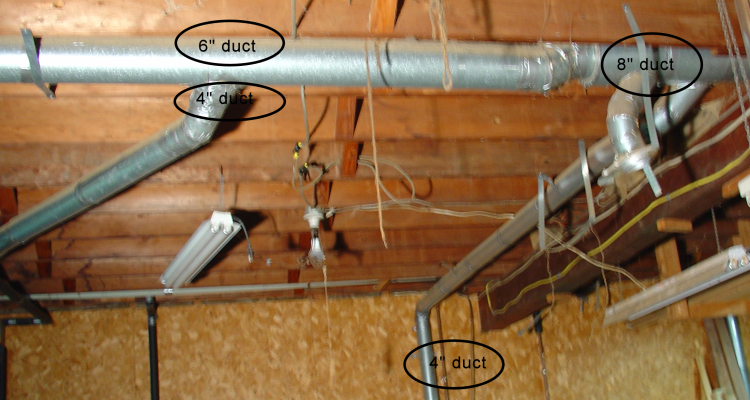

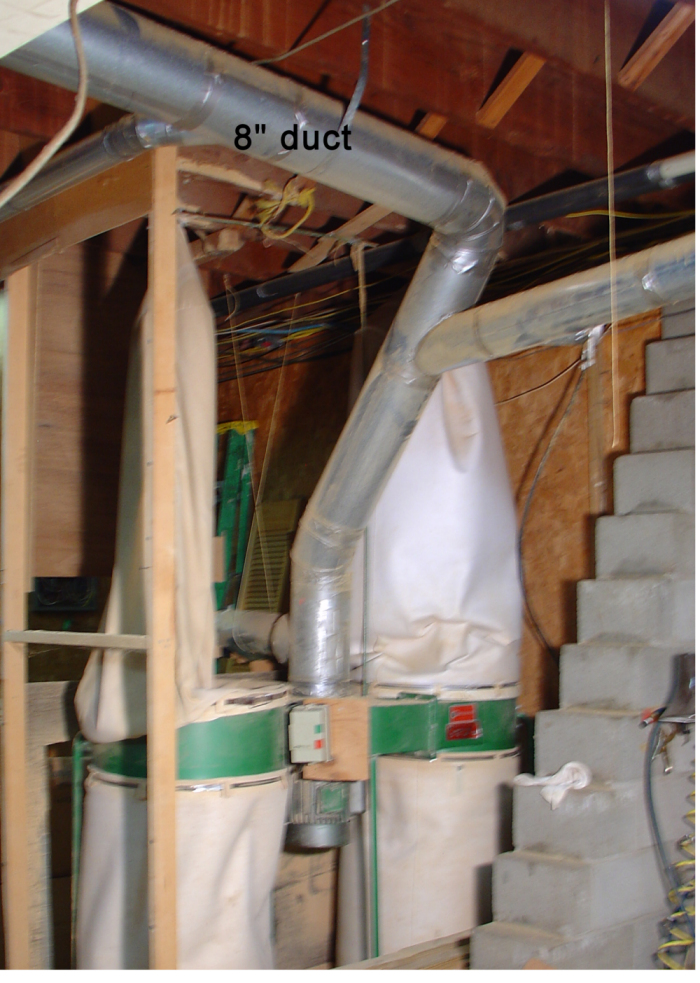

Approx. 75ft of galvanized steel piping for 11 machines: 4", 6", 8"
Aluminum blast gates, 1 for each machine
Dust hoods (see below) - made for our machines, will probably work with many of yours.
Assorted lengths of 4" grounded PVC connects from ducting to machine hood.
Quantity of 4" duct clamps.
PRICE: $1,150.

For more information, contact Ed Loewenton: ed@loewenton.org     More Items for Sale


* This dust-collection system was purchased in 1989 from Wilke Machinery to keep the air clean in a growing woodworking shop. The operation was wound down over the past 10 years and all the machinery has been sold except this blower system, which will no longer be needed after this month.

UPGRADES
The motor was rewound in 1990 by Metevier Electric Motor Service in Burlington, VT. to run cooler and more efficiently.
* 3 of the 4 bags were upgraded in 1990 to non-woven fabric to capture the finest dust particles.
* The magnetic switch was upgraded to Riken in 1991.

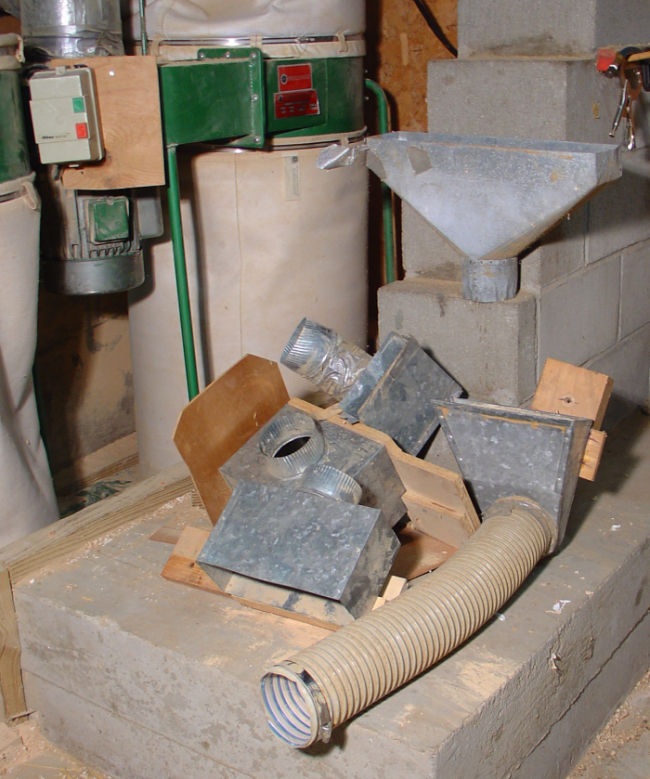

 Dust Hoods:
Table Saw, 6" Jointer, Lathes, Planer. Drum Sander, etc.
